Equipment Introduction of Laser Cleaning Machine Rust Removal
MRJ-Laser:

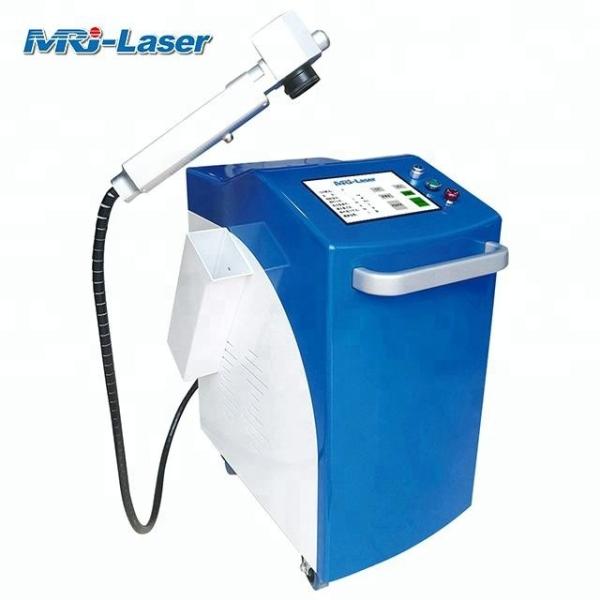

♦ MRJ-FL-C100A Laser cleaning machine is a high-tech product for
surface cleaning.
♦ A cleaning way without chemical reagent and medium, dust-free and
anhydrous;
♦ Small size, light weight, high speed, high precision and good
stability.
Performance Parameters of Laser Cleaning Machine Rust Removal
MRJ-Laser:
| Model | MRJ-FLC-100A | MRJ-FLC-120A | MRJ-FLC-200A |
| Laser Power | 100W/Fiber | 120W/Fiber | 200W/Fiber |
| Clean Length | 1mm to 100mm |
| Cleaning speed | 1-1000mm/s |
| Focus Length | F=254±25mm/500±25mm | | |
| Cleaning ability | 15M²/Hour | 18M²/Hour | 25M²/Hour |
| Drift for a long time | <0.5mRad |
| The maximum scan angle | ±15° |
| Repeat accuracy | 8μRad |
| Cooling | Air Cooling |
| Cable Length | 3m to 6m(optional) |
| Dimension | 670x436x865mm |
| Weight | 47±0.1KG |
| Working Temperature | 0℃-45℃ |
| Storage temperature | -10 to +60℃ |
| Clean head weight | 2.5±0.1KG |
| Control Screen | 7 inch (Can be customized) |
| Warranty time | 2 years |
Equipment Introduction:
♦MRJ-FL-C100A Laser cleaning machine is a high tech and latest
product of surface cleaning, it
is easy to install, operate and automated;
♦The whole machine is simple to operate, connect the power, then it
can start to clean without
chemical reagent, medium and water;
♦With auto focus, spherical surface cleaning, high cleanliness, can
remove the resin, oil
contamination, stains, dirt, rust, coating, plating and painton the
surface of different shape metal
objects, and the stone caving surface attachments and rubber mold
surface residue;
♦Mainly used in mold processing, automobile manufacturing,
shipbuilding industry, food processing,
sewage treatment, rubber tires and petrochemical industries.
Advantages of our laser rust cleaning machine:
1. High-Tech non-contact cleaning:
No need any chemical liquid, no consumables, environmental
protection;
2. Imported high-speed motors from USA
Small size, light weight, high speed, high precision and good
stability
3. Unique self-developed spiral cleanig controlling system
More uniform cleaning surface, WITHOUT zebra crossing compare with
traditional laser cleaning.
Adjustable cleaning size and precise location;
4. Professional laser cleaning optical design:
High damage threshold of scanning mirror and F-theta lens;
Continuously long-time working more than 10 hours;
5. High cleaning efficiency and safety
Simple structure, Auto-focus, easy to operate,
Automated cleaning by hand-held or work with manipulator;
6. Different languages to manipulate the friendly interface
System Characteristic:
1. Unique self-developed spiral cleaning mode.
Ø Scanning length and width can be set according to customer’s
demands.
Ø Effectively avoid the zebra crossing caused by traditional laser
cleaning.
Ø High cleaning efficiency,no damage to substrate of components;
2. Professional laser cleaning optical design.
Ø High damage threshold of scanning mirrors,
Ø High beam transmittance & large focus depth of F-theta lens,
Ø Meet long-time working of high-power laser cleaning;
3. Special custom laser and galvo scanner head
Ø High cleaning speed, to meet various high-level laser cleaning
application demands;
4. Four differentf hand-held cleaning heads
Ø Light weight, ergonomic design and easy to operate;
Ø Can match with various types of laser, greatly improve the
applicable range of this system.
