    High Efficiency Portable 3D Printer And Glass Crystal Laser Marking Machine

    Ask Lasest Price
    Brand Name : MRJ-Laser
    Model Number : MRJ-FL-3D20W
    Certification : CE,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Alipay
    Supply Ability : 100 units per month
    Delivery Time : 7-10 days for general type machines ,15-30 days for customized machines
    • Product Details
    • Company Profile

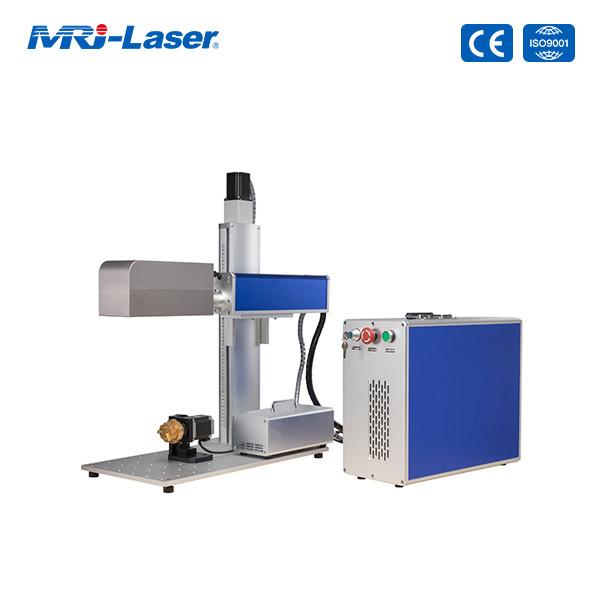

    High Efficiency Portable 3D Printer And Glass Crystal Laser Marking Machine

    Equipment Introduction

    • MRJ-FL-3D series desktop dynamic focusing fiber laser marking machine can be applied to any curved surface, sphere, step, slope and irregular surface marking.

    • The laser focal length can be changed through the focusing axis, realizing deep carving and meeting all 3D marking requirements.

    • It is equipped with MM3D dynamic focus control software designed by Eastern Logic Inc, to achieve high precision marking on any shaped objects


    Performance Parameters

    ModelMRJ-FL-3D20MRJ-FL-3D30MRJ-FL-3D50
    Output power20W30W50W
    Pulse Energy1.2MJ1.3MJ1.5MJ
    Repetition FREQ.20K-80KHz30K-80KHz50k-120khz
    Laser Wavelength1064nm1064nm1064nm
    Marking Field≤300mmx300mm≤400mmx400mm≤700mmx700mm
    Min. Line Width30um30um30um
    Marking Speed≤6000mm/s≤6000mm/s≤6000mm/s
    Support FontTrueType Font, AUTOCAD Single Line Font, Custom Font
    1D BarcodeCODE39/CODE128/ITF/CODEABAR/EAN/UPC, etc.
    2D BarcodeOR/PDF417/DataMatrix(ECC200), etc.
    Input FilePLT/DXF/DWG/BMP/JPG/JPEG/PNG/TLF, etc.
    3D ModelSupport STL Format
    Input PowerSingle Phase 110V/220V/50-60Hz
    Overall Power Consumption≤600w≤800w≤1000w
    Cooling MethodAir CoolingAir CoolingAir Cooling
    Control InterfaceUSB2.0USB2.0USB2.0

    Product Features

    • MRJ-Laser 3D laser marking machine can be equipped with high-quality ultraviolet laser source, optical fiber laser source and CO2 laser source according to your detailed requirements about marking.
    • It has very small spot, which enable its precise and fine marking effect. Also it produces very little heat-affected zone.
    • The three-axis control technology makes it mark on uneven surface, arc surface and other irregular parts.
    • It is widely used in fine laser processing in the high-end market.
    Product Advantages
    (1) Non- contact marking
    Laser marking is an non-mechanical "knife", it can mark on any regular and irregular surface. It produces no extra stress and deforamtion on the marking objects, ensuring the marking accuracy of the workpiece. And it has no corrosion, no poison, no pollution.

    (2) Permanent marking effect
    The marking will not fade away as time changes, as well as touching and temperature changes.

    (3) High engraving precision
    3D laser marking machine engraves with fine lines, the minimum line width is up to 0.04mm. The markings are clear, durable and beautiful.

    (4) The running cost is low
    It has no extra spending and consumables compared with the traditional marking methods. Like inkjet marking, it will consume a lot of ink after purchase the inkjet marking machine. All the laser marking machine needs is electric power consumption, which is also low as a household appliance's. Although the laser marking machine has a higher spending at the purchasing, it has a much lower running cost and longer lifetime in a long term.

    (5) High Efficiency
    The laser beam is controlled by the computer software and can move at high speed (5~7 meters per second), the marking process can be completed in a few seconds.

    (6) Anti-fake
    By applying laser marking technology, the carved mark is not easy to be imitated and changed. To a certain extent, it has a good anti-fake effect.
