14000mm/S Portable Laser Marking Machine , Flying 20W Laser Etching Machine

Ask Lasest Price
Brand Name :	MRJ-Laser
Certification :	CE, ISO
Price :	Negotiable
Model Number :	MRJ-FL-F

Add to Cart

Product Details
Company Profile

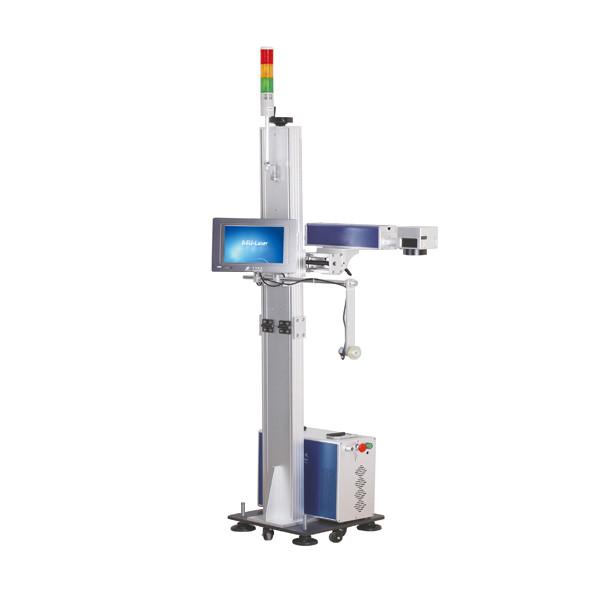

14000mm/S Portable Laser Marking Machine , Flying 20W Laser Etching Machine

Perfect Flying 20W Laser Printer For Metal Laser Engraving Machine

Product Description

MRJ-FL series of online laser marking machine can realize high quality and non-contact laser marking code on fast moving products.
It marks clearly and permanent that cannot be erased, which has incomparable advantages compared to traditional inkjet teanology;
It can work stably on complex flow production line for long time, up to 100,000 hours working without consumables, meet the permanent marking requirements of various of materials.

Specification:
Model No.	MRJ-FL-FM20A
Brand Name	MRJ-Laser
Laser Type	Laser marking machine
Laser Power	20W
Beam Quality	M²≤1.2
Marking Filed	7070mm to 300300mm
Marking Speed	≤14000mm/s
Min. Character	0.05mm
Min. Line Width	10um
Repetition Precision	±0.005mm
Laser Head	Sino-Galvo scanning head
System &Control Software	Origin JCZ- Ezcad&EZCAD
Support Format	PLT, BMP, DXF, JPG, TIF, AI etc
Red Light Pointer	YES
Cooling System	Air cooling
Power Requirements	220-240V/50Hz or 110-120V/50,60Hz
Optional Parts	Rotary/F-theta Lens/Computer/Food switch
Weight&CBM	100kgs&1cbm

Machine parts photos

Featured: (High Speed, High Precision)

High Marking Precision
Free Maintenance, easy to operation
Excellent Laser beam quality
Long life,laser generator life over 100,000 hours
Humanized design,convenient installation
Low power consumption,stability laser output
High electronic conversion efficiency
Import high speed galvo scanner system
FDA certificate, No Laser Additives added
Desktop/ flying, CO2/ Fiber/ UV,Chinese/ imported Laser optional

Applied Industries:
Electronic Components :	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter:	Panel signs, precision equipment, etc.
Instrument:	Panel signs nameplates, precision equipment, etc.
Hardware Tools:	Knives, tools, measuring tool, cutting tool, etc.
Automobile Parts:	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.
Mechanical Parts:	Bearings, gears, standard parts, motors, etc.
Daily Necessities:	Handicrafts, zipper, key holder, sanitary ware, etc.
Jewelry:	Rings Jewelry, gold, silver, etc.
Food package:	Plastic packages, etc.
Marking Material:
Metals:	Carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc,
Metals:	rare metal and alloy steel, gold, silver, titanium, etc.
Non-metals:	Plastics, rubber, resin, carton box, etc.
Main Parts:
Fiber Laser Source:	IPG, SPI, Raycus, Max, JPT (optional)
Scan Head:	SINO-GALVO
Marking Software:	EZCAD
Others:	F-theta Lens; Computer
Superiority:
R & D:	Professional engineering design and the smallest size;
Warranty&Services	100,000 hours life time with 2 years warranty and oversea after-sales.
Certification	Customized products with CE, FDA, EN60825 and test certificates.

Application

Patents &Certificate

Packaging & Shipping

Company Information

Chengdu MRJ-Laser Technology Co.,Ltd is a professional high-tech enterprise specialized in laser marking, welding, visual inspection and related application control system’s development, production and sales, all products have passed EU CE and USA FDA certificates. Quality control strictly enforce the ISO9001 quality management system.

FAQ

Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio, we can judge whether our machine can meet your need or not. Then we can recommend you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide video in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we have many models, such as Fiber laser, CO2 laser, Dynamic focus laser machine, UV laser machine, Large Scan Field Laser marking machine, Fiber/CO2 Laser jet marking machine and so on. What’s more, we have the ability to make specially according your requirement!

Q5: What's the guarantee, in case the machine breaks down?
The machine has two years guarantee.

Q6: How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q7: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client’s specific requirements, it would be 15 to 30 days.

Q8: How's the payment?
Telegraphic Transfer (T/T).
Q9: Do You Arrange Shipment For The Machines?
Yes, we will arrange shipment for you for FOB or CIF price. For EXW price, clients need to arrange shipment by themselves or their agents.
Q10:How is the packing?
Durable wooden case or as per required.
